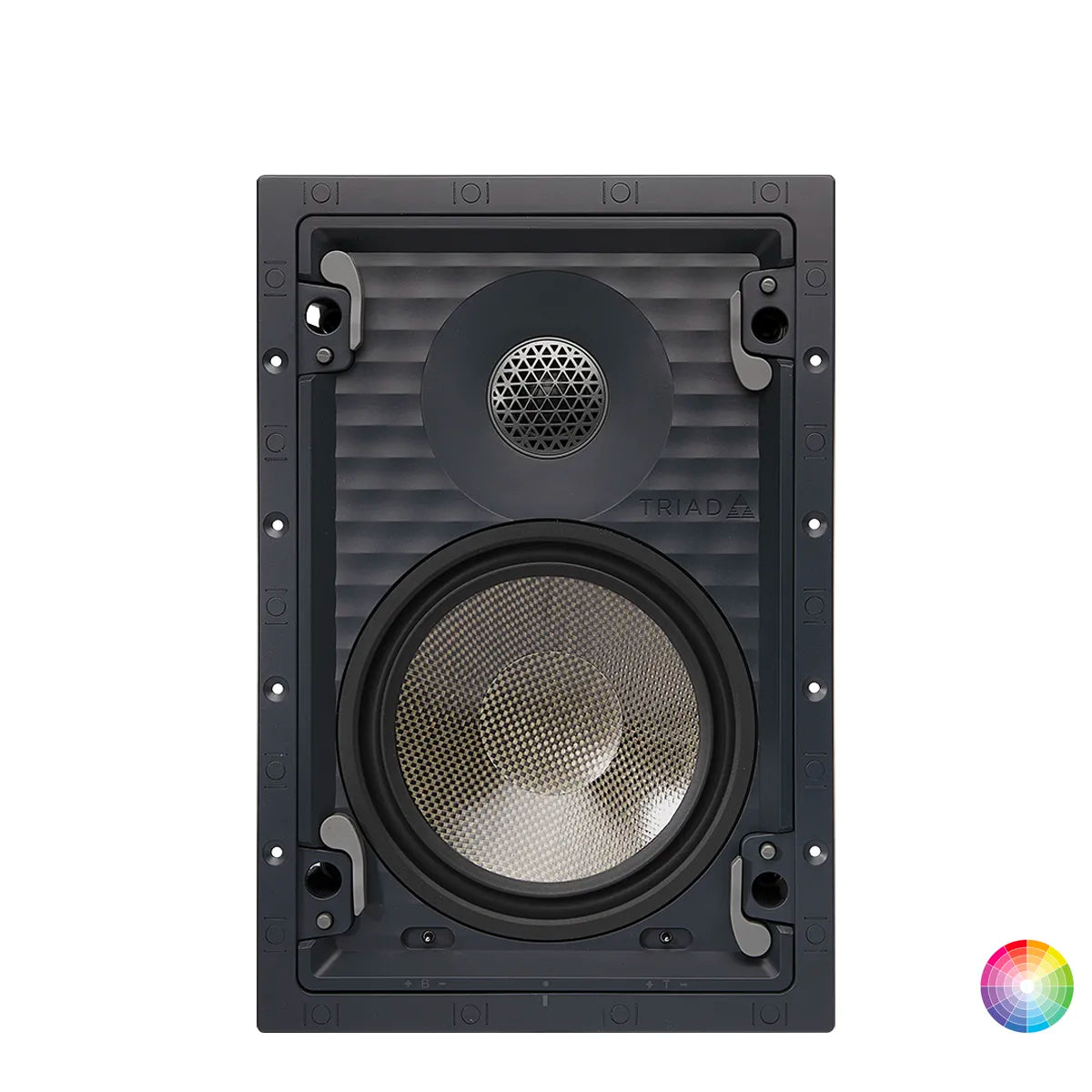

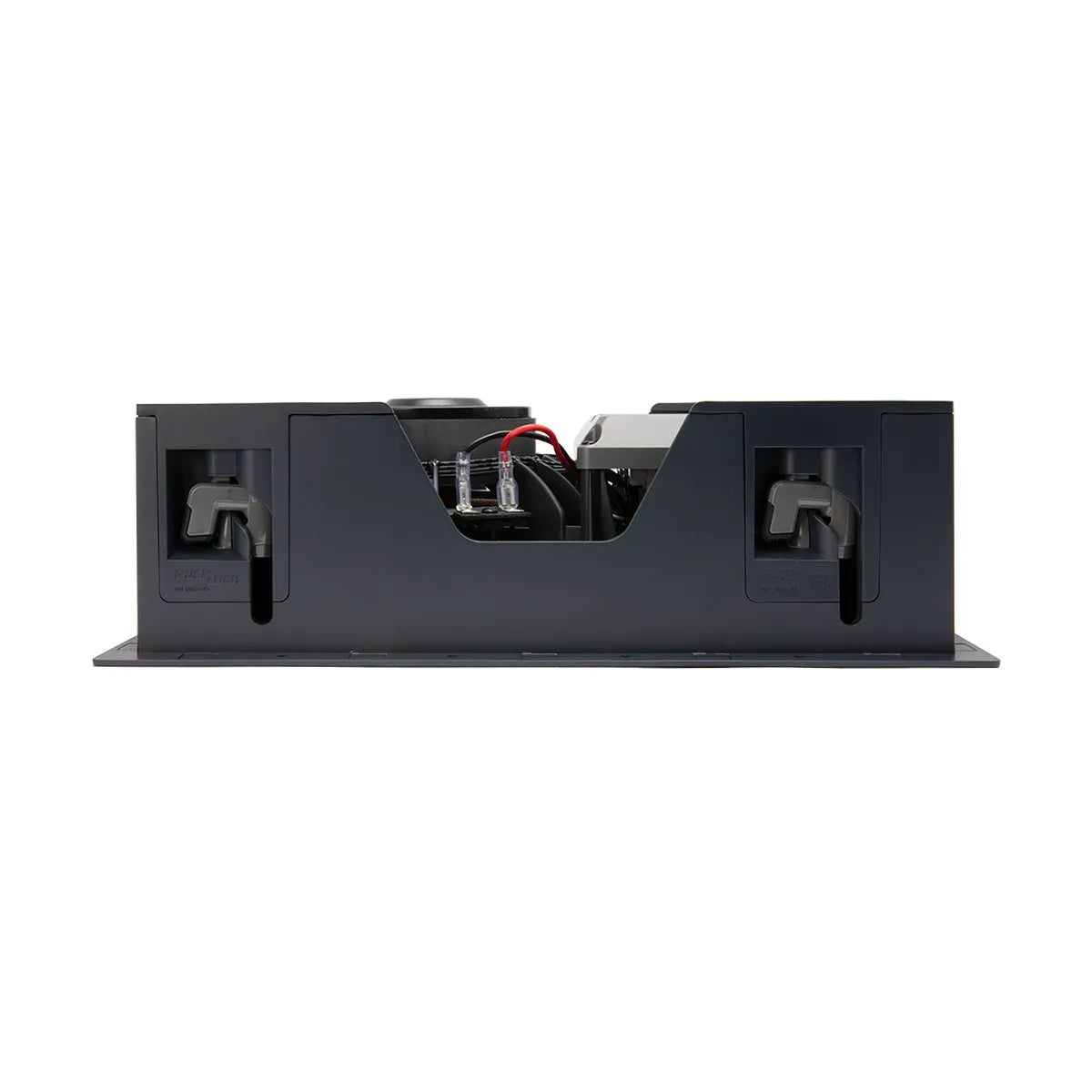

Triad PDX IW65 Series 5 In-Wall Speaker

Sale price£576.00

Special order



The Triad PDX IW65 is a high-performance 6.5-inch in-wall speaker crafted for premium audio installations in both residential and commercial environments. As part of Triad’s PDX Series 5, the IW65 is engineered with precision acoustic modeling to deliver exceptional sound clarity, even dispersion and seamless architectural integration.

At the heart of the IW65 is a 6.5-inch woven carbon fiber/Kevlar woofer and a 1-inch Teteron dome tweeter mounted in a tuned acoustic back chamber. This two-way design ensures a smooth, full-range frequency response with low distortion, delivering detailed highs and punchy bass performance. The speaker’s optimised waveguide promotes wide and consistent sound coverage, making it ideal for distributed audio and focused listening environments.

Designed for high-end media rooms, living spaces and commercial applications, the Triad PDX IW65 also features Push Lock by Swarm tool-free mounting technology for fast and secure installation. A variety of grille options,round or square, micro-trim or trimless, allow for a sleek, unobtrusive finish that blends effortlessly into any interior.

With its combination of refined sound performance and installer-friendly features, the IW65 offers an outstanding solution for those seeking discreet, audiophile-quality in-wall sound.

Frequency Response: 42Hz - 23kHz
Impedance: 8 ohms
Sensitivity: 90 dB (1W@1M)
Power Handling: 160 watts
Drivers: 6.5-inch Interwoven Kevlar / Carbon fiber bass driver and 1-inch Teteron tweeter
Overall Dimensions (with grille): 320 mm x 217 mm
Cut-Out Dimensions: 297 mm x 193 mm
Mounting Depth: 97 mm

Triad PDX Series Speakers

The Triad PDX Series is a premium line of distributed audio speakers designed to deliver high-performance sound while seamlessly integrating into modern home and commercial spaces. Engineered for both style and performance, the PDX Series offers a powerful, flexible solution for multi-room audio that meets the demands of audiophiles and designers alike.

Grille finishes can be matched to any color sample or leading paint brands including Farrow & Ball, Pantone, Valspar and Dulux, ensuring visual harmony throughout your space.
